How to build a custom 3Dprinted RC Lamborghini Aventador LP-700-4?

This is how we did it. With our LEGACY Chassis v.7.2

3Dprinted RC Lamborghini Aventador LP-700-4
3Dprinted RC Lamborghini Aventador LP-700-4

AVENTADOR!!! Which car fan would not be familiar with this Italian Super Sport Car. We choose this vibrant yellow to embody the companies main colors.

Our aim was to get as much authenticity as possible.
As always we let you be the judge to tell how well we could create him.

Building Video Enjoy!

Download body kit
STL files archived with WinRAR

advertisement

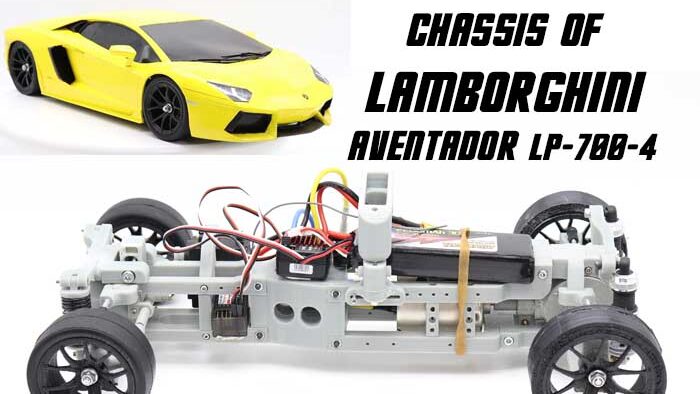

Chassis v.7.2 (L.Aventador LP-700-4)

This is a Legacy Chassis! Click to v.7.3

Chassis dimensions

Wheelbase270mm
Front Wheel Track193mm
Rear Wheel Track198mm

We strive for the best Chassis, because I am a perfectionist. My bro isn’t, so there’s the tension growing! This is a second generation chassis which means it has 3D printed frame not the U-profile aluminium 1st generation.

Parts List of Chassis v7.2 (2nd generation)

Screws and nuts:
M4x40                   1 piece          + M4 nut
M4x25                   2 piece

M3 ball joint         8 pieces
M3x30                   2 pieces        + 2x M3 nuts
M3x50                   2 pieces        + 2x M3 nuts
M3x25                   2 pieces        + 2x M3 nuts
M3x40                   2 pieces        + 2x M3 nuts
M3x10                   2 pieces
M3x20                   2 pieces
M2x12                   39 pieces
M2x16                   8 pieces
M2x20                   11 pieces
M2x8                     4 pieces

Download CHASSIS
STL files archived with WinRAR

advertisement

The whole design is made for scale 1:10
This is our seventh model’s self-developed Chassis.
It’s quite, sturdy now as it can be jumped with.

Threaded rods:
M4    2 pieces    47mm long
M3    2 pieces    15mm long
M3    2 pieces    11mm long

Magnets:
D8x4     2 pieces
Nails:
D2x38   4 pieces

Bearings:
4x10x4       4 pieces
5x11x5       6 pieces
10x15x4     2 pieces

3D printing settings we used

3D Printer: Zortrax M200 plus
Technology: LPD
Used material: ABS filamen
Slicer program: Zortrax Z-SUITE

Settings:
Infill: 20%
Recomended layer height: 0.19 mm
Support was set automatically by the program

Got a question about building Know-How?
Ask us at the bottom of this page!

Gearbox

RC car gearbox

advertisement

Non-printed parts and general INFO of 3Dprinted Lamborghini Aventador LP-700-4

Suspension

rc car suspension Porsche 911 GT2

hole to hole distance: 55 mm

Rocking arm screw

mfactory33

2mm nail 35-40mm long. Threaded (DIY), used as a screw. Note: Spring washer used!

Wheels

RC car wheels

Fastrax scale 1:10 Tyre diameter is: 65 mm Product number: FAST0078GM
Get it on ebay

Ball cups for steering

Ball_joint_M3-for-3dprinted-rc-car-chassis

4 mm ball with 3mm screw thread.

Servo

model factory

 Feetech FS5103B
get it on ebay

Wheel adapter

Tamiya: 53056

Rear Drive Shaft

Rear drive shaft

Tamiya: 51216 TA05
A front drive shaft must be shortened

Flange lock nut

mfactory33.com

Tamiya: 53024

Differential

HSP 94103

Bewel gear inlet

this is the inlet gear to the differential

TG10 Wheel Axle 2 pcs

set for 3D printed RC car

Tamiya: 50823

Motor 540

  7.2 – 12 V , 20.000 rpm

10x15x4 bearing

2 pcs for the differential

5x11x5 bearing

Bearing for gearbox
get it on ebay

4x10x4 bearing

Front wheel bearing

Filling unwanted cracks

Tamiya: 87053
Get it on ebay

advertisement

Chassis assembly Video

Here’s a full assembly video of a very similar chassis. Enjoy 🙂

Most used tools

Scalpel&Allenkeys&RASPs

Scalpel for removing print support. Keys for screws. Every kind of Rasps to get the surface smooth and even.

Most Used Parts for Assembly

Super glue

Both Gel and Liquid ones. Use GEL when putting parts together. When it holds use LIQUID on the surface.

Super glue for assembly

Glue Gun

It’s adhesive sets very quickly. We used it only inside the body kit, because on the surface leaves nasty traces.

mfactory33.com
