3Dprinted RC Ford Mustang 1967 Fastback

How to build a custom 3Dprinted RC Ford Mustang 1967 Fastback?

This is how we did it. With our LEGACY Chassis v.1.1

First of all this this beauty here was our role model. The one we strived to recreate miniaturized.
We let you be the judge to tell how well it succeeded. Our aim is to get the authentic look as much as possible then test it to its limits.

Testing Video

Download body kit
STL files archived with WinRAR

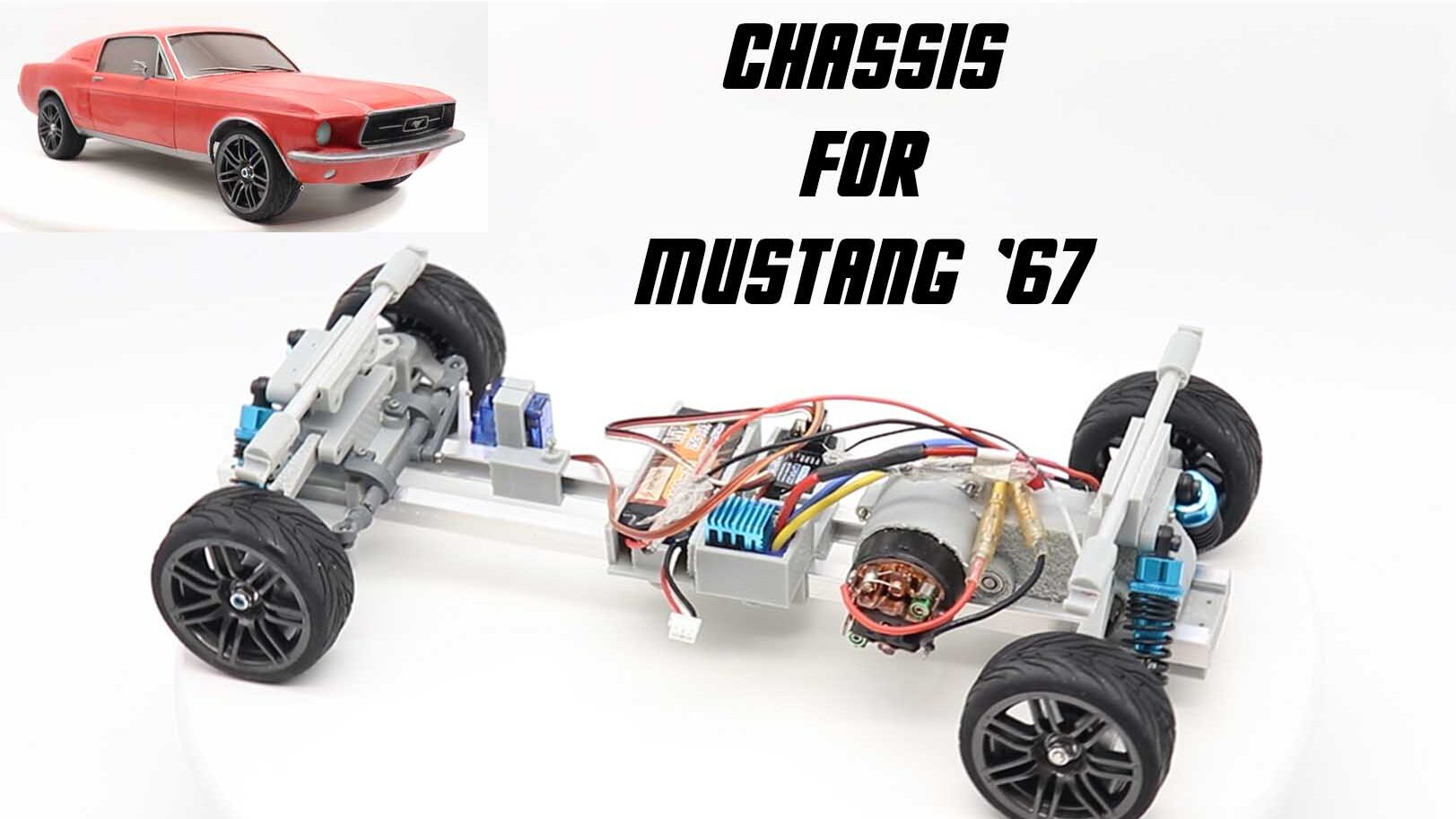

Chassis v.1.1 (Ford Mustang ’67)

This is a Legacy Chassis! Click to v.1.3

Chassis dimensions

Wheelbase	270mm
Front Wheel Track	170mm
Rear Wheel Track	170mm

This is our very first model! Please keep that in mind, since this one we went very far in terms of chassis innovations.

We strive for an ultimate universal chassis because we wanna use it under many 3D printed car bodies. So that’s why the slidable parts.
The chassis is built on a 2 (aluminium) U profile (8×10 mm) with bought and 3D printed parts.

3D printed parts: Housing of the electric motor, housing of the battery, most of the steering system…

Bought parts are:
The suspension (length 60 mm), the wheel rims with the tires, the servo, the receiver, drive shaft and the differential is from Tamiya, the electric motor (8000 rpm), and of course screws (M2, M3) and the ball joints (M3).

Parts List of Chassis v.1.1 (1st generation)

Screws and nuts:
M4x40 1 piece + M4 nut
M4x~25 2 piece

M2x12 ~50 pieces
M2x16 ~16 pieces
M2x20 ~16 pieces
M2x8 ~ 8 pieces
Nails:
D2x38 4 pieces
Threaded rods:
M4 2 pieces 47mm long
Bearings:
4x10x4 4 pieces
5x11x5 8 pieces

Download CHASSIS
STL files archived with WinRAR

The whole design is made for scale 1:10
This is our first model’s self-developed Chassis.
Again, it is not perfect!

3D printing settings we used

3D Printer: Zortrax M200 plus
Technology: LPD
Used material: ABS filamen
Slicer program: Zortrax Z-SUITE

Settings:
Infill: 20%
Recomended layer height: 0.2mm
Support was set automatically by the program

Got a question about building Know-How?
Ask us at the bottom of this page!

Gearbox

Non-printed parts and general INFO of 3Dprinted Ford Mustang 1967 Fastback

Shock absorbers

Hole to hole distance: 60 mm
Get it on ebay

Rocking arm screw

2mm nail 35-40mm long. It is glued to the chassis

Wheels

Fastrax scale 1:10 Tyre diameter is: 65 mm Product number: FAST0078GM

Ball cups for steering

Ball_joint_M3-for-3dprinted-rc-car-chassis

4mm ball with 3mm screw thread.

Servo

Part number: FS90R
Get it on ebay

Wheel adapter

Tamiya: 53056

Rear Drive Shaft

Tamiya: 51216 TA05
A front drive shaft must be shortened
Get it on ebay

Flange Lock Nut

Tamiya: 53024

Differential Bevel Gear set

Tamiya: 50602

Get it on ebay

Touring car hard joint cup set

Tamiya: 53218

get it on ebay

TG10 Wheel Axle 2 pcs

Tamiya: 50823

get it on ebay

U profile trails 2 pc

8×10 mm from hardware store

Motor 540

Voltage: 7.2 – 12 V (20.000 rpm)

5x11x5 bearing

Bearing for gearbox
get it on ebay

4x10x4 bearing

Front wheel bearing
get it on ebay

Windows

3D Printed base painted Brown, then plastic from Stationery Store glued at the edges to it

Cross fastener

D6mm tube from harware store

Chassis Assembly VIDEO

This video is for v.2.1 (BMW M3 GTR), but the majority of the constituent elements are the same, so you could easily see how to assemble v.1.1 Ford MUSTANG’67

Most used tools

Scalpel&Allenkeys&RASPs

Scalpel for removing print support. Keys for screws. Every kind of Rasps to get the surface smooth and even.

Super glue

Both Gel and Liquid ones. Use GEL when putting parts together. When it holds use LIQUID on the surface.

Glue Gun

It’s adhesive sets very quickly. We used it only inside the body kit, because on the surface leaves nasty traces.
