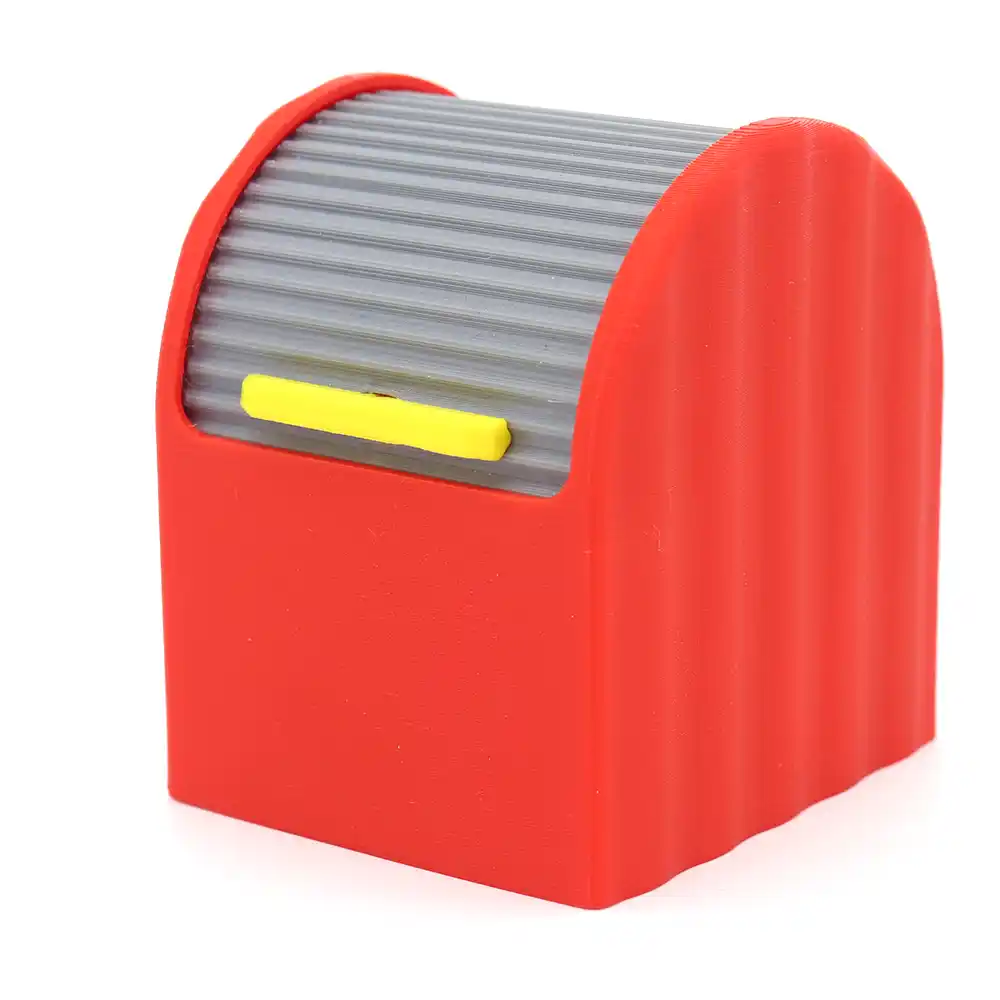

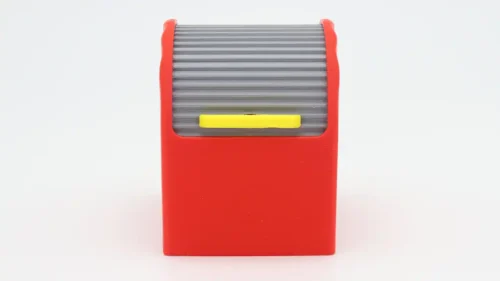

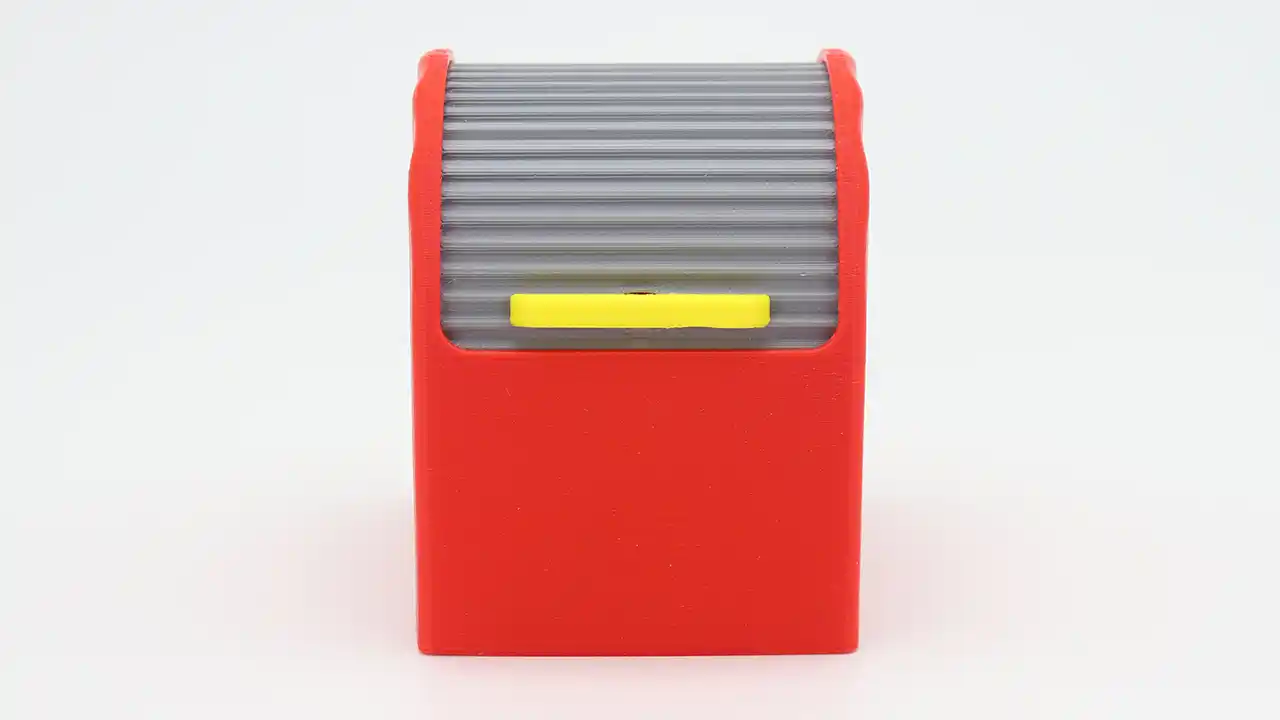

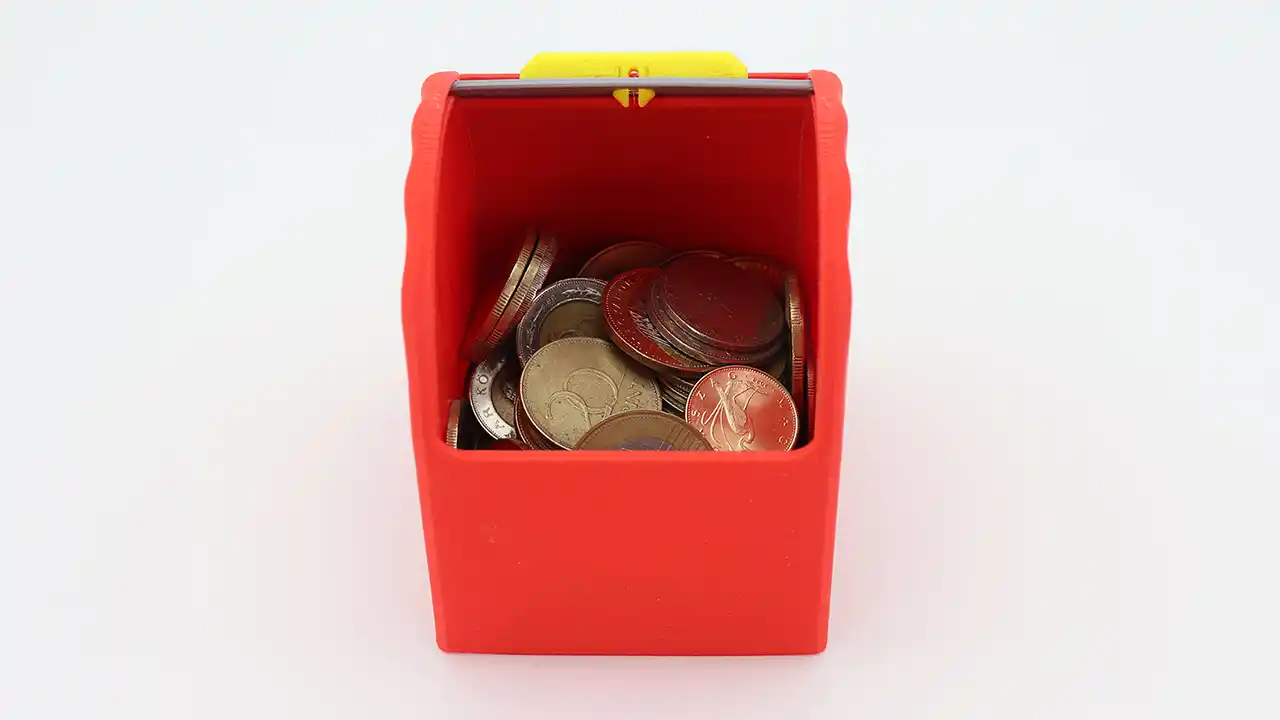

Sliding Door Storage Box

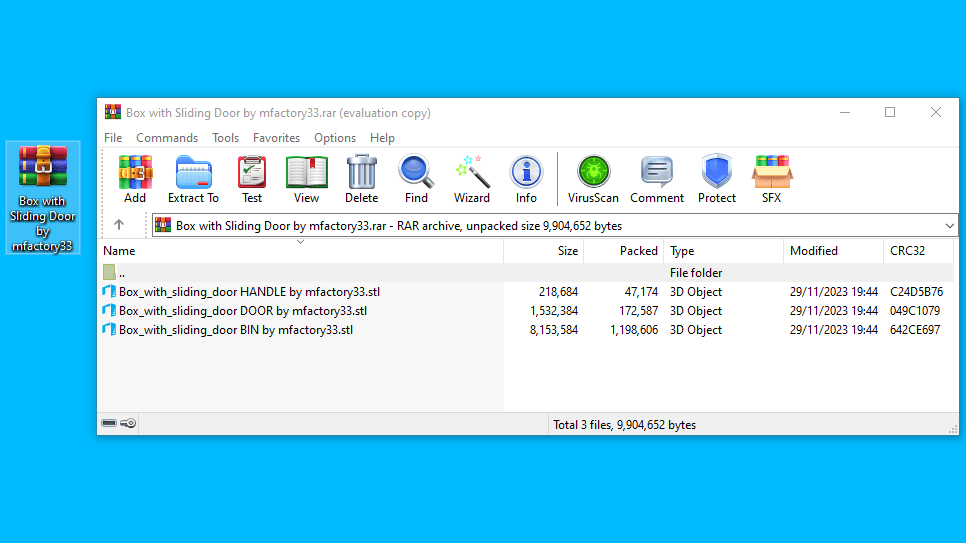

(Use WinRaR to extract files after downloading)

General details:

• Easy Print-in-Place Design

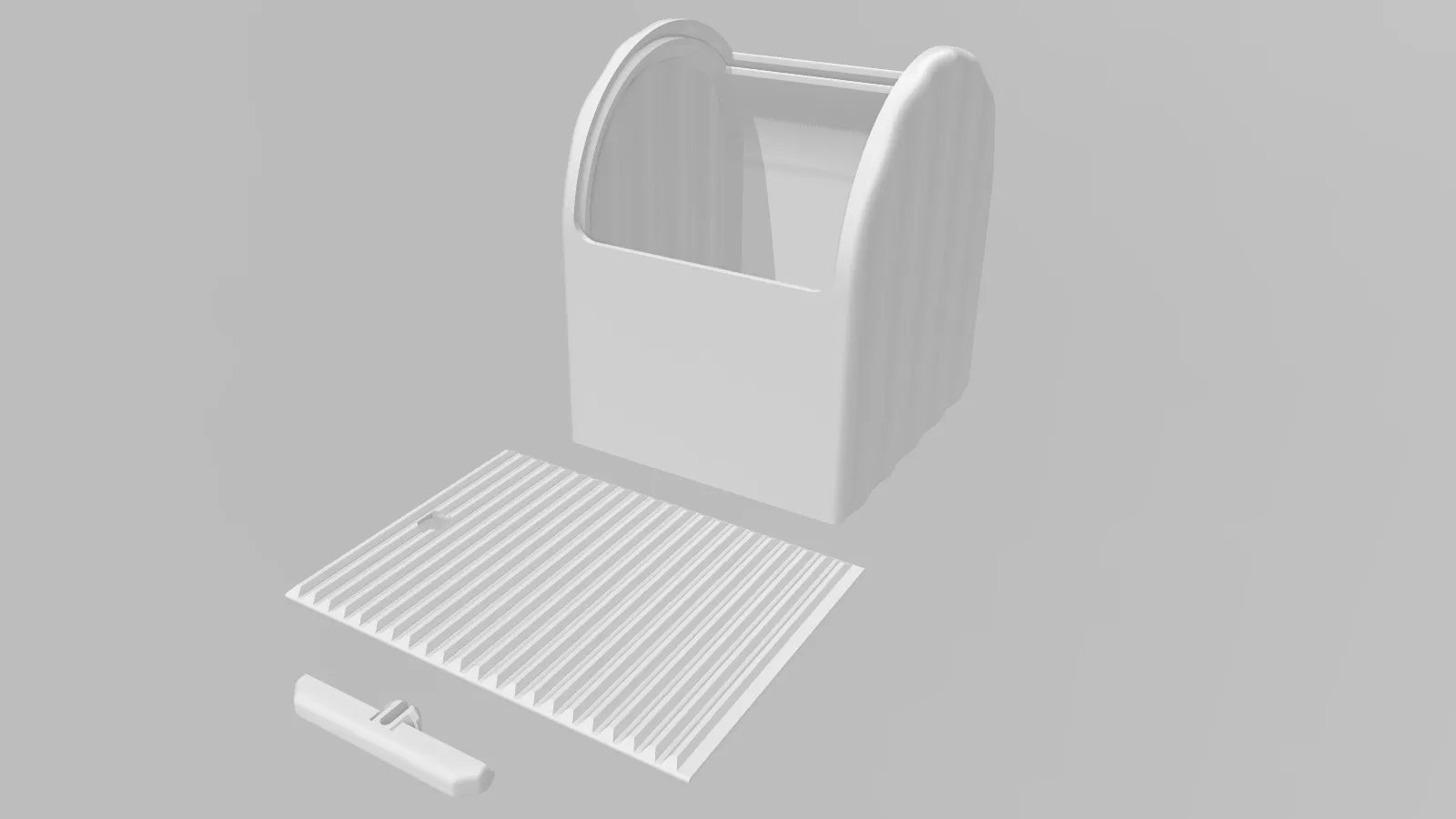

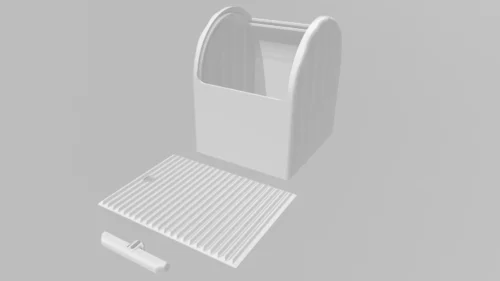

• Three parts included
• Does require a little assembly
• Sanding Surfaces before Using is recommended

Assembly:

1. Slide into the bin the accordion door from the bottom
2. Snap on the handle into the hole on the placed door.
3. Done!

3D Printing instructions:

• Model designed for FDM printing
• Print bed needed: 180x180mm
• Infill: 5-10%
• Layer height: 0,2 – 0,25 mm
• Print Speed: 40-60 mm/s
• Noozle diameter: 0,4 mm
• Support: no supports / no support needed
• Material: PLA, ABS
• Cooling Fan Speed: PLA 100%, ABS LOW or OFF to prevent warping
• Extruder (Hot End) Temperature: PLA (190-220°C), ABS (220-250°C)
• Bed Temperature: PLA (50-60°C), ABS (90-110°C)
• Bed Adhesion: 3DLAC Spray adhesive (For perfect adhesion to the printing bed and to avoid warping)
• We printed the body with PLA filament because we aimed for low shrinkage,
  if you have an enclosed printer, using ABS should not be a problem
• Neither Rafts nor Brims needed for printing
• Slicing made with Prusa Slicer

We 3D printed it with an Ender 3 V2 Neo

This Foldable Flexi Sheet Box Model STL 3Dprintable files are optimized for above meantioned print bed! You can attempt to resize for different scale/size. However, you will might need to modify the downloaded digital file for articulated body parts to work as expected!

Join our community of 3D printer enthusiasts, and moreover, explore endless bonding possibilities.
Visit our Forum for insights on our latest designs. Ever got lost… Not sure about some printing stuff? Ask away!!!

If you register on this site, your Downloads and purchases will have lifetime access in your account menu. Plus, you’ll receive FREE updates and product enhancements!

Abbreviations:

STL – (STereoLitography)
ABS – (Acrylonitrile Butadiene Styrene)
PLA – (Polylactic Acid)
FDM – (Fused Deposition Modeling)
