Chassis v.9.3 (FCV P71/P72)

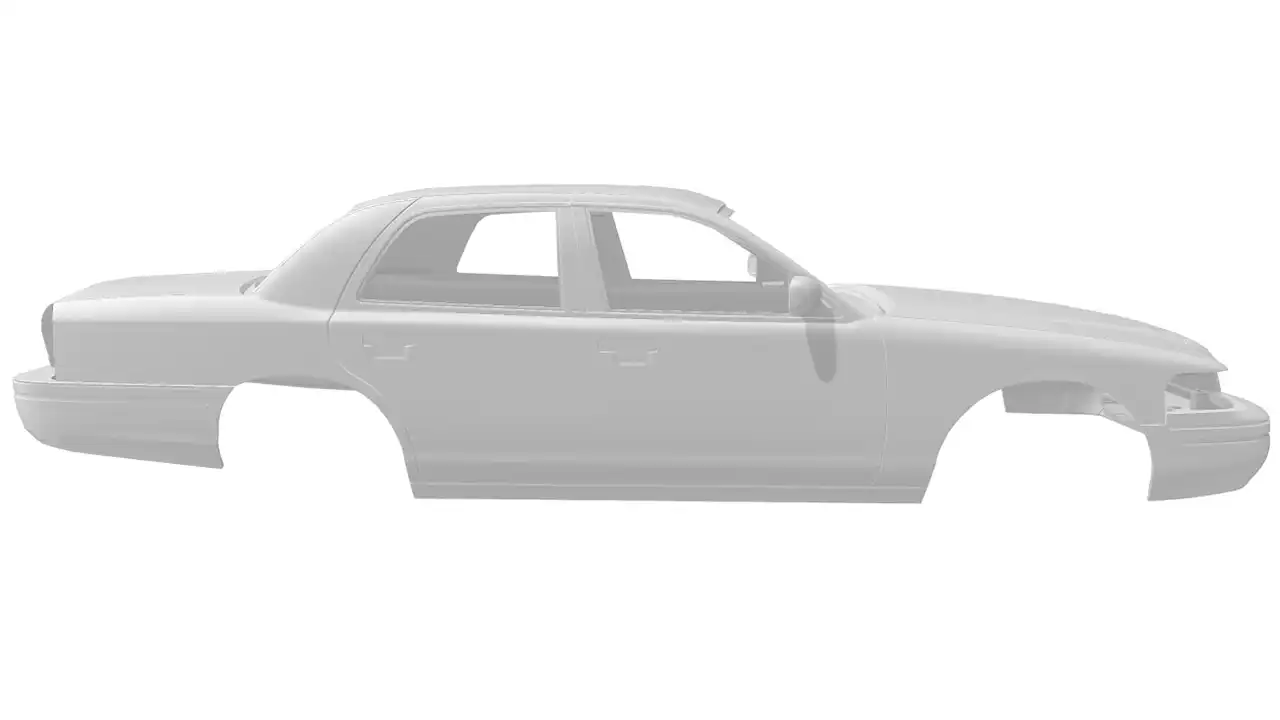

Our 3rd GENERATION CHASSIS for RC Ford Crown Victoria P71 police interceptor and P72 body kit
Dimensions of Chassis v.9.3 DESTINY
| Wheelbase | 276mm |
| Front Wheel Track | 180mm |
| Rear Wheel Track | 185mm |
+
This car was the first to have our 3rd generation RC Chassis! You are able to build it with our latest! When you download DESTINY you get everything to build any 3Dprinted 1/10 Chassis for on-road electric RC cars.
Below you can see the “Varying” parts which are needed to set DESTINY for the RC Ford Crown Victoria P71/P72 body kit. You will find below parts among the downloaded folders.
- Setting Wheelbase
Connecting Part
WB: 276mm HtH: 51mm
You can also use the adjustable Connecting Part!
- Setting Front Track
Front Rocking Arms
180mm_Rocking_Arm_front (2pcs)
Axle&Wheelnuts
Front_axle_Big_bearing_BASE (2pcs)
Steering Sides
180_4/4.8/5mm_BALLHEAD_Steering_bar_sides_V3 (2pcs)
Front Turnbuckles
M3 threaded rods (2pcs) Length set by you!
For Steering Sides you can use the adjustable version!
You can also build the front Turnbuckles with the new version using an M3x20mm screw!
- Setting Rear Track
Rear Rocking Arms
185mm_Rocking_Arm_rear (2pcs)
Rear Wheelnuts
Rear_Wheelnut_Big_bearing_BASE (2pcs)
DogBones
185mm_Dogbone_print (2pcs)
Rear Turnbuckles
M3 threaded rods (2pcs) Length set by you!
At the Front&Rear Turnbuckles you determine the length of the threaded M3 rods. You can easily set the inclination of the wheels!
You can also build the rear Turnbuckles with the new version using an M3x25mm screw!
Chassis PARTS
E-Motor 540
Electric Brushed (7.2 – 12 V, ~25.000 RPM)
GET it on:
Servo 01
Feetech FS5103B (40.8×20.1x38mm)
GET it on:
Motor Controller 01
QUICRUN 1060 (60A)(36.5x32x18.0mm)
GET it on:
10x15x4 Bearing
12 pcs 8 for the wheels and 4 in to the differential
GET it on:
Suspension 01
Hole to hole distance: 60mm. 1/10 On-Road Shock Absorber
GET it on:
Wheels 01
Fastrax scale 1:10 D: 65 mm FAST0078GM
GET it on:
Magnet 01
8 pcs for mounting sytems Diameter: 8x4mm
GET it on:
Battery 01
RC car LI-PO Battery 102x35x20mm 2200mAh. (Match up the connector with the motor controller’s!)
GET it on:
Pistol Grip Transmitter 01
6 channel radio transmitter with receiver
GET it on:
OPTIONAL Parts
Metal Differential 01
Metal Differential Gear for HSP 94122 94111 RC cars
GET it on:
Bewel Gear Inlet 01
Metal Inlet Gear of the Differential
GET it on:
5x11x5 Bearing
Alternative Bearing for gearbox 2pcs. Also for the rear wheelaxle 4 pcs if tamiya 50823 is used.
GET it on:
Flange Lock Nuts
Tamiya: 53024
GET it on:
TG10 Wheel Axle
Tamiya: 50823 2 pcs needed
GET it on:
Metal Clutch 01
Clutch for RC planes perfect for Destiny (3.17mm-5mm)
GET it on:
Ball Cups for Steering
4.8 mm ballhead with M3 thread. Tamiya 50592
GET it on:
WINDOWS
You can make the windows 3 different ways. First, you can print the unfolded window STL files. Secondly, you can use the first option as a stencil for a different material you prefer to make the windows with. Thirdly, with a resin printer you can 3d-print the folded window STL files.
Light bar used for the 1:10 police P71 interceptor:
GET it on:
The original Ford Crown Victoria P71 Police Interceptor we used as a reference
I made the door vinyls a bit bigger in the word document among the files for better recognition.
The Crown Victoria P71 Police Interceptor (1998–2011) was marketed specifically for law-enforcement use. A long-wheelbase Crown Victoria sedan P70 (2002–2011) was marketed primarily for taxi cab fleets all over the United States.
You will be able to build this as a taxi cab as well, though for only the standard wheelbase matching the wheelbase of the Police Interceptor. P71 Interceptor, the P72 and P73 Base (regular/commercial car) had the same wheelbases. To be 100% accurate, most of the taxies had longer wheelbases (P70) which was most noticable on the bigger backdoor as passenger biger legroom was prefered. If many of you guys revolt and demand the longer version too, I reckon my brother will draw that for ya!
