Chassis v.5.3 (3Dprinted RC Nissan GT-R)

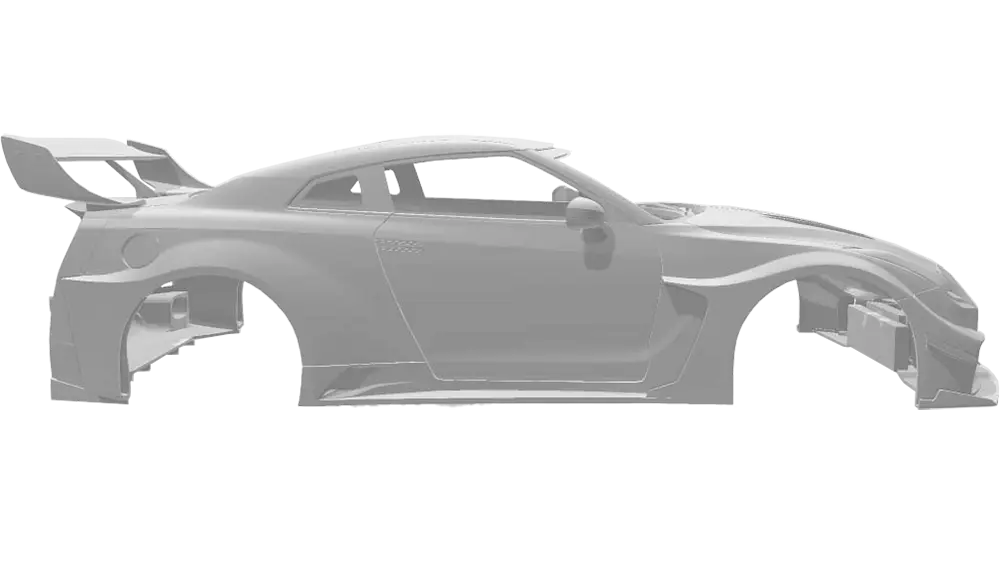

Our 3rd GENERATION CHASSIS for 3Dprinted RC Nissan GT-R r35 LWS body kit
Dimensions of Chassis v.5.3 DESTINY
| Wheelbase | 249mm |
| Front Wheel Track | 175mm |
| Rear Wheel Track | 180mm |
+
We have previously made the Nissan GT-R r35 body kit with an outdated Chassis. Now, you are able to build it with our latest! When you download DESTINY you get everything to build any 3Dprinted 1/10 Chassis for on-road electric RC cars.
Below you can see the “Varying” parts which are needed to set DESTINY for the RC Nissan GT-R r35 Liberty Walk Silhouette (LWS) body kit. You will find them among the downloaded folders.
Fully detailed Chassis Assembly Video
- Setting Wheelbase
Connecting Part
WB: 249mm HtH: 24mm
- Setting Front Track
Front Rocking Arms
175mm_Rocking_Arm_front (2pcs)
Axle&Wheelnuts
Front_axle_Big_bearing_BASE (2pcs)
Steering Sides
175_4/4.8/5mm_BALLHEAD_Steering_bar_sides_V3 (2pcs)
Front Turnbuckles
M3 threaded rods (2pcs) Length set by you!
- Setting Rear Track
Rear Rocking Arms
180mm_Rocking_Arm_rear (2pcs)
Rear Wheelnuts
Rear_Wheelnut_Big_bearing_BASE (2pcs)
DogBones
180mm_Dogbone_print (2pcs)
Rear Turnbuckles
M3 threaded rods (2pcs) Length set by you!
At the Front&Rear Turnbuckles you determine the length of the threaded M3 rods. You can easily set the inclination of the wheels!
Chassis PARTS
E-Motor 540
Electric Brushed (7.2 – 12 V, ~25.000 RPM)
GET it on:
Servo 01
Feetech FS5103B (40.8×20.1x38mm)
GET it on:
Motor Controller 01
QUICRUN 1060 (60A)(36.5x32x18.0mm)
GET it on:
10x15x4 Bearing
12 pcs 8 for the wheels and 4 in to the differential
GET it on:
Suspension 01
Hole to hole distance: 60mm. 1/10 On-Road Shock Absorber
GET it on:
Wheels 01
Fastrax scale 1:10 D: 65 mm FAST0078GM
GET it on:
Magnet 01
8 pcs for mounting sytems Diameter: 8x4mm
GET it on:
Battery 01
RC car LI-PO Battery 102x35x20mm 2200mAh. (Match up the connector with the motor controller’s!)
GET it on:
Pistol Grip Transmitter 01
6 channel radio transmitter with receiver
GET it on:
OPTIONAL Parts
Metal Differential 01
Metal Differential Gear for HSP 94122 94111 RC cars
GET it on:
Bewel Gear Inlet 01
Metal Inlet Gear of the Differential
GET it on:
5x11x5 Bearing
Alternative Bearing for gearbox 2pcs. Also for the rear wheelaxle 4 pcs if tamiya 50823 is used.
GET it on:
Flange Lock Nuts
Tamiya: 53024
GET it on:
TG10 Wheel Axle
Tamiya: 50823 2 pcs needed
GET it on:
Metal Clutch 01
Clutch for RC planes perfect for Destiny (3.17mm-5mm)
GET it on:
Ball Cups for Steering
4.8 mm ballhead with M3 thread. Tamiya 50592
GET it on:
