Chassis v.1.3 (3Dprinted RC Ford Mustang1967)

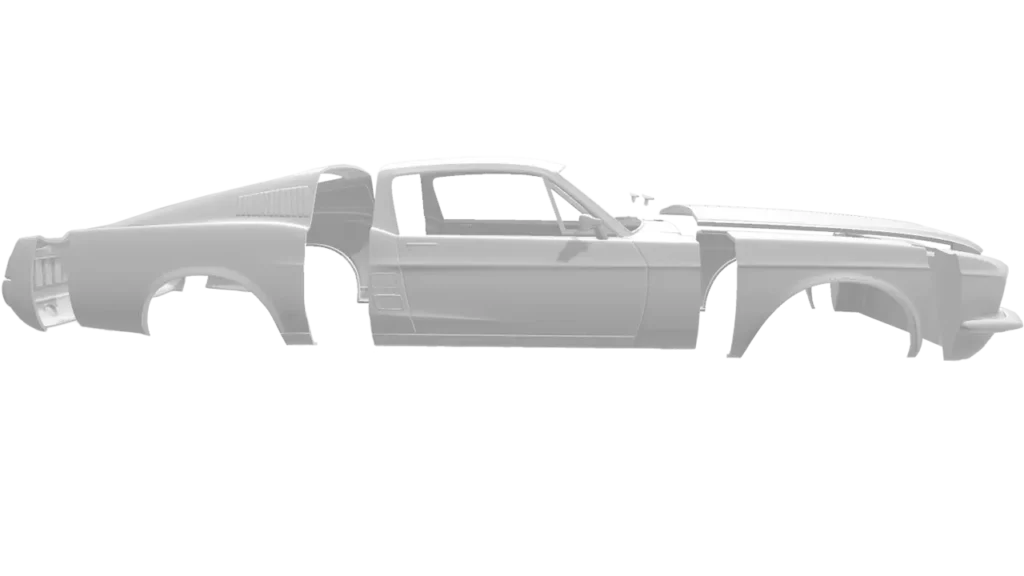

Our 3rd GENERATION CHASSIS for our 3Dprinted RC Ford Mustang1967 Fastback Body Kit
Dimensions of Chassis v.1.3 DESTINY for 3Dprinted RC Ford Mustang1967 Fastback
| Wheelbase | 270mm |
| Front Wheel Track | 170mm |
| Rear Wheel Track | 170mm |
+
We have previously made the Mustang body kit with an outdated Chassis. Now, you are able to build it with our latest! When you download DESTINY you get everything to build any 3Dprinted 1/10 Chassis for on-road electric RC cars.
Below you can see the “Varying” parts which are needed to set DESTINY for the Mustang body kit. You will find them among the downloaded folders.
Full Chassis Assembly video on Youtube
- Setting Wheelbase
Connecting Part
WB: 270mm HtH: 45mm
- Setting Front Track
Front Rocking Arms
170mm_Rocking_Arm_front (2pcs)
Axle&Wheelnuts
Front_axle_Big_bearing_BASE (2pcs)
Steering Sides
170_4/4.8/5mm_BALLHEAD_Steering_bar_sides_V3 (2pcs)
Front Turnbuckles
M3 threaded rods (2pcs) Length set by you!
- Setting Rear Track
Rear Rocking Arms
170mm_Rocking_Arm_rear (2pcs)
Rear Wheelnuts
Rear_Wheelnut_Big_bearing_BASE (2pcs)
DogBones
170mm_Dogbone_print (2pcs)
Rear Turnbuckles
M3 threaded rods (2pcs) Length set by you!
At the Front&Rear Turnbuckles you determine the length of the threaded M3 rods. You can easily set the inclination of the wheels to get your very own Mustang!
Chassis PARTS
E-Motor 540
Electric Brushed (7.2 – 12 V, ~25.000 RPM)
GET it on:
Servo 01
Feetech FS5103B (40.8×20.1x38mm)
GET it on:
Motor Controller 01
QUICRUN 1060 (60A)(36.5x32x18.0mm)
GET it on:
10x15x4 Bearing
12 pcs 8 for the wheels and 4 in to the differential
GET it on:
Suspension 01
Hole to hole distance: 60mm. 1/10 On-Road Shock Absorber
GET it on:
Wheels 01
Fastrax scale 1:10 D: 65 mm FAST0078GM
GET it on:
Magnet 01
8 pcs for mounting sytems Diameter: 8x4mm
GET it on:
Battery 01
RC car LI-PO Battery 102x35x20mm 2200mAh. (Match up the connector with the motor controller’s!)
GET it on:
Pistol Grip Transmitter 01
6 channel radio transmitter with receiver
GET it on:
OPTIONAL Parts
Metal Differential 01
Metal Differential Gear for HSP 94122 94111 RC cars
GET it on:
Bewel Gear Inlet 01
Metal Inlet Gear of the Differential
GET it on:
5x11x5 Bearing
Alternative Bearing for gearbox 2pcs. Also for the rear wheelaxle 4 pcs if tamiya 50823 is used.
GET it on:
Flange Lock Nuts
Tamiya: 53024
GET it on:
TG10 Wheel Axle
Tamiya: 50823 2 pcs needed
GET it on:
Metal Clutch 01
Clutch for RC planes perfect for Destiny (3.17mm-5mm)
GET it on:
Ball Cups for Steering
4.8 mm ballhead with M3 thread. Tamiya 50592
GET it on:
